MONTACARGAS 3,000 LBS ELECTRICO

TIPO TRICICLO

PRECIO  USD 19,500.00

MAS MAS IVA

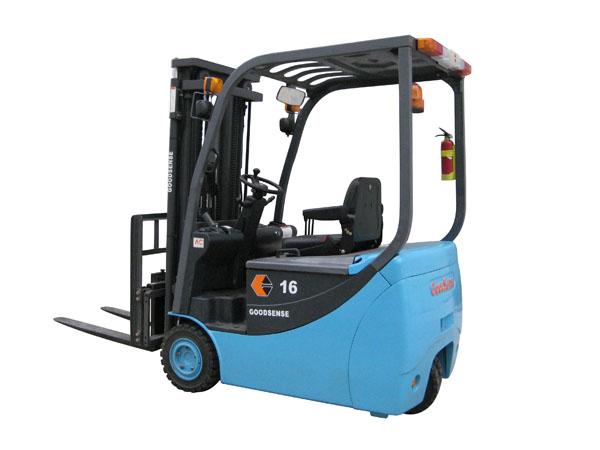

1.6Ton 3-Wheel Electric Forklift with CURTIS controller

MODELO CAPACIDAD MOTOR TIPO DE MOTOR VOLTAJE FB-15 1.6 TON CONTROLADOR CURTIS ELECTRICO 48V/400AH, M300     G-Series  Forklift (FE16) > Capacity: 1600KG > Great Reliability > Simplified Serviceability > Enhanced Productivity

Product description：

1 Model 　   FE16-S1 2 Rated Capacity kg 1600 3 Load Centre mm 500 4 Lifting Height mm 3300 5 Fork Size L×W×T mm 920×100×35 6 Tilting Angle F/R（α°/β°） Deg 5/6   7 Overall Dimension Length (to fork face) mm 1990 8 Overall Width mm 1090 9 Height When Mast Lowered mm 1995 10 Height When Mast Lifting mm 4325 11 Safeguard Height mm 2055 12 Turning Radius Min. mm 1530 13 Front Overhang mm 430 14 Tread (Front/Rear) mm 906/180 15 Ground Clearance Min. mm 95 16 Wheelbase mm 1250   17 Speed Travel km/h 16 18 Lifting mm/s 340 19 Gradeability Laden % 15 20 Service Weight（include battery ） kg 3250 21 Tire Front×2 　   18×7-8PR 22 Rear×2 　   15×4.5-8PR   23 Motor Driven Motor kw 2×6.5 24 Lift Motor kw 15 25 Battery Standard V/Ah 48/420(582) 26 Controller Manufacturer 　   SME 27 Operating Pressure for Attachment Mpa 14.5
